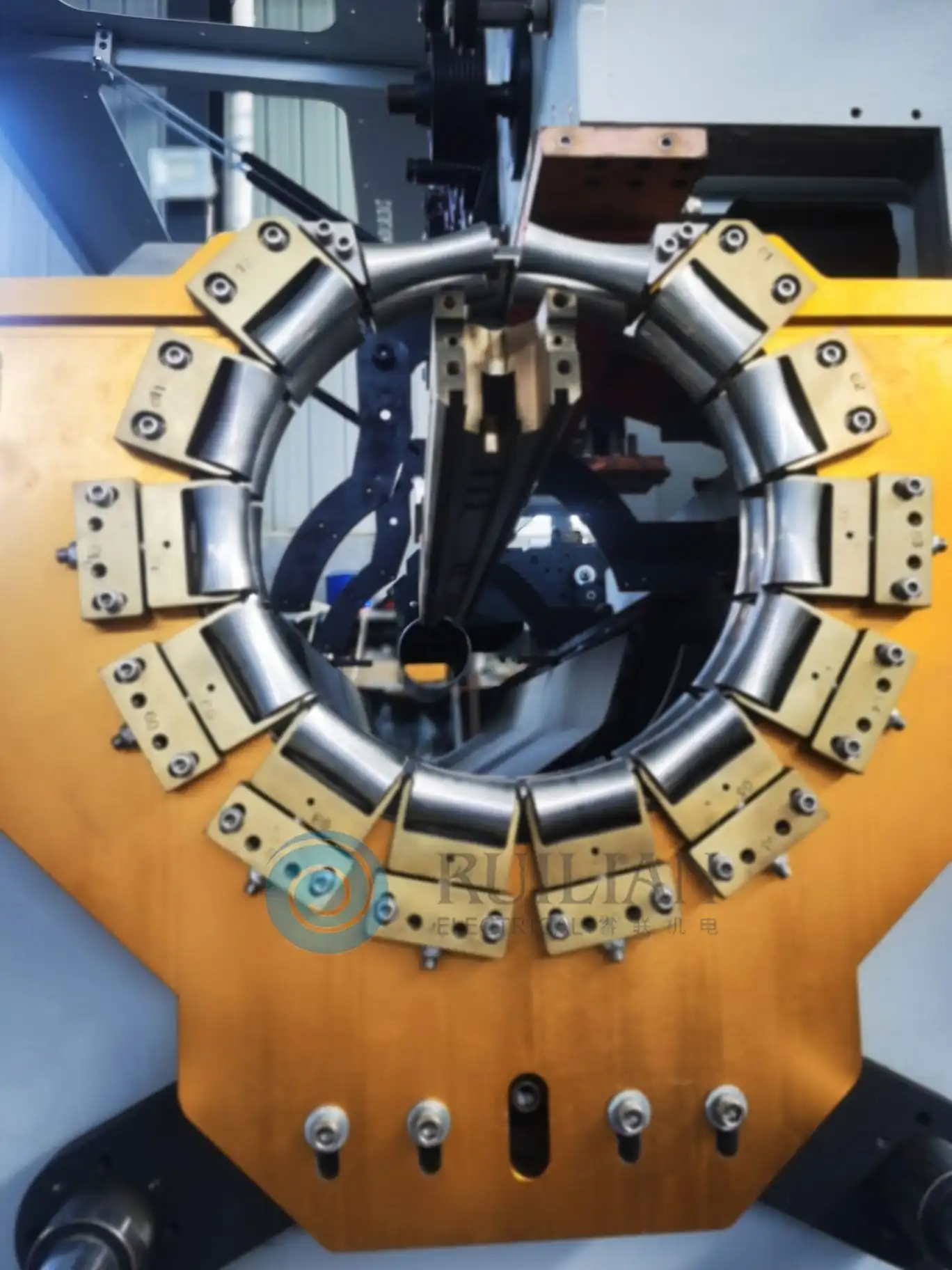

What is Rear Entry Resistance Welding Machine?
The Rear Entry Resistance Welding Machine is an advanced welding apparatus designed to meet the high standards of industrial production, particularly in the automotive, aerospace, and heavy machinery industries. This state-of-the-art machine employs resistance welding techniques where heat generated by electrical resistance at the welding point is used to join metal pieces together. Its rear entry design offers unique advantages in terms of accessibility and efficiency, allowing operators to perform welding tasks in confined spaces and on complex assemblies with ease.
Technical Parameter
| Parameter | Specification |
|---|---|
| Input Voltage | 220V/380V , 50/60Hz |
| Power Consumption | 45 kW |
| Welding Current Range | 5000A - 15000A |
| Welding Pressure Range | 0.4-0.6 MPa |
| Welding Length | 50mm - 500mm |
| Cooling System | Water Cooling |
| Control System | PLC with Touchscreen Interface |
| Welding Speed | Up to 25 cycles/min |
| Dimensions (L x W x H) | 2000mm x 1200mm x 1800mm |
| Weight | 1200 kg |
Product Features
Advanced Welding Technology: Rear entry design allows for precise and consistent welds on complex parts.
High Production Efficiency: Automated welding process reduces cycle times and increases output.
Flexible Configuration: Customizable electrode designs and welding parameters to meet diverse application needs.
Intuitive Control System: User-friendly interface with digital display for easy setup and monitoring.
Robust Construction: Durable frame and high-quality components ensure long-term reliability and minimal downtime.
Safety First: Built-in safety features, including emergency stop and protective guarding, safeguard operators and equipment.
Application Fields1. Automotive Industry:
The Rear Entry Resistance Welding Machine is extensively used in the automotive industry for manufacturing components such as body panels, frames, and various structural parts.
2. Aerospace Industry:
In the aerospace sector, the machine is utilized for welding critical components that require high precision and strength.
3. Heavy Machinery:
Manufacturers of heavy machinery rely on this welding machine for constructing robust and durable parts. For this application, taking care of thick materials and make solid welds should be capable.
4. Electronics and Electricals:
The machine is also used in the production of electronic and electrical components, where precise and clean welds are necessary. Battery packs, connectors, and other electronic assemblies are all part of this.
5. Construction and Infrastructure:
The machine is utilized to weld steel structures, supporting bars, and other significant parts in the development business. Due to its dependability and effectiveness, it is suitable for large-scale construction projects.
Quality Control and Safety Standards1. ISO Certification:
The machine is built to comply with ISO standards for quality management and manufacturing processes. This ensures that the equipment meets international benchmarks for reliability and performance.
2. Regular Inspections:
Regular inspections and quality checks are performed to ensure that each machine meets the required specifications and performance criteria. This includes testing the welding output, checking for defects, and verifying safety features.
3. Safety Protocols:
The machine is designed with numerous safety protocols to protect operators. This includes automated shutdowns in case of faults, emergency stop buttons, and protective guards around critical components.
4. Training Programs:
Comprehensive training programs are provided to ensure operators are well-versed in the machine's operation and safety procedures. This assists with limiting the gamble of mishaps and guarantees proficient utilization of the hardware.
5. Compliance with Industry Standards:
The machine adheres to various industry standards, including CE marking for European markets and other relevant certifications for different regions. This ensures it meets the regulatory requirements for safety and performance.
After-Sales Service
1. Warranty:
The Rear Entry Resistance Welding Machine comes with a comprehensive warranty covering parts and labor. This provides peace of mind to customers and ensures support in case of any issues.
2. Technical Support:
Dedicated technical support is available to assist with any operational or maintenance issues. This includes remote assistance as well as on-site support if necessary.
3. Spare Parts Availability:
A wide range of spare parts is available to ensure that any worn or damaged components can be quickly replaced. This helps to minimize downtime and maintain productivity.
4. Training and Documentation:
Detailed training programs and documentation are provided to help operators understand and efficiently use the machine. This includes user manuals, video tutorials, and in-person training sessions.
5. Custom Service Plans:
Customized service plans are available to meet the specific needs of different customers. This includes regular maintenance checks, software updates, and other tailored services.
Why Choose Us?
Industry Experience: Over 15 years of expertise in welding technology.
Custom Solutions: Tailored machines to fit your specific needs.
Global Presence: Serving clients in over 40 countries.
Contact Us
RUILIAN, a professional manufacturer and supplier with many years of experience in producing Rear Entry Resistance Welding Machines, If you are interested in our products, please contact us at ry@china-ruilian.cn and hm@china-ruilian.cn.
